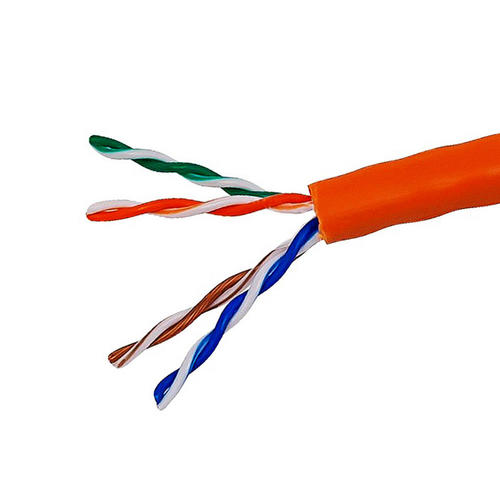

1000ft 4 Pair Cat6 Solid U/UTP 550MHz 23AWG CMR Riser Bulk Cable
This bulk CAT6 riser rated cable consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. It is typically used in riser environments as premise wiring and terminated from a patch panel to a Cat6 jack.
Description
This bulk CAT6 riser rated cable consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. It is typically used in riser environments as premise wiring and terminated from a patch panel to a Cat6 jack.
|
Physical Characteristics
|
||||
|---|---|---|---|---|
| Color | Blue/Orange/Purple/White | |||
| Number of Pairs | 4 Pairs | |||
| Wire Gauge | 23AWG Solid | |||
| Conductor Material | Solid Annealed Bare Copper | |||
| Insulation Material | HDPE | |||
| Overall Diameter | 0.037 inch | |||
| Average Thickness | 0.0088 inch | |||
| Jacket Material | PVC – Polyvinyl Chloride | |||
| Jacket Rating | CMR [Riser Rated] | |||
| Average Wall Thickness | 0.023 inch | |||
| Nominal Outer Diameter | 0.205 inch | |||
| Cable Shielding | None | |||
| Ripcord | Yes | |||
| Temperature Rating | Installation: 0℃ ~ +60℃ Operating: -20℃ ~ +75℃ |
|||
|
Mechanical Characteristics
|
||||
| Before Aging | Tensile Strength (Mpa): >= 13.8 Elongation (%): >= 100 |
|||
| Aging Condition (ºC x hrs) |
100×168 | |||
| After Aging | Tensile Strength (Mpa): >= 85% of unaged Elongation (%): >= 50% of unaged |
|||
|
Performance
|
||||
| Frequency | 550 MHz | |||
|
Approvals
|
||||
| c(ETL)us | Yes | |||
| ISO/IEC 9001 | Yes | |||
| ANSI/TIA-568.C.2 | Yes | |||
|
Environmental
|
||||
| RoHS | Yes | |||
|
Packaging Information
|
||||
| Package Quantity | 1 | |||
| Product Weight | 33.5 lbs [15.2kg] | |||
