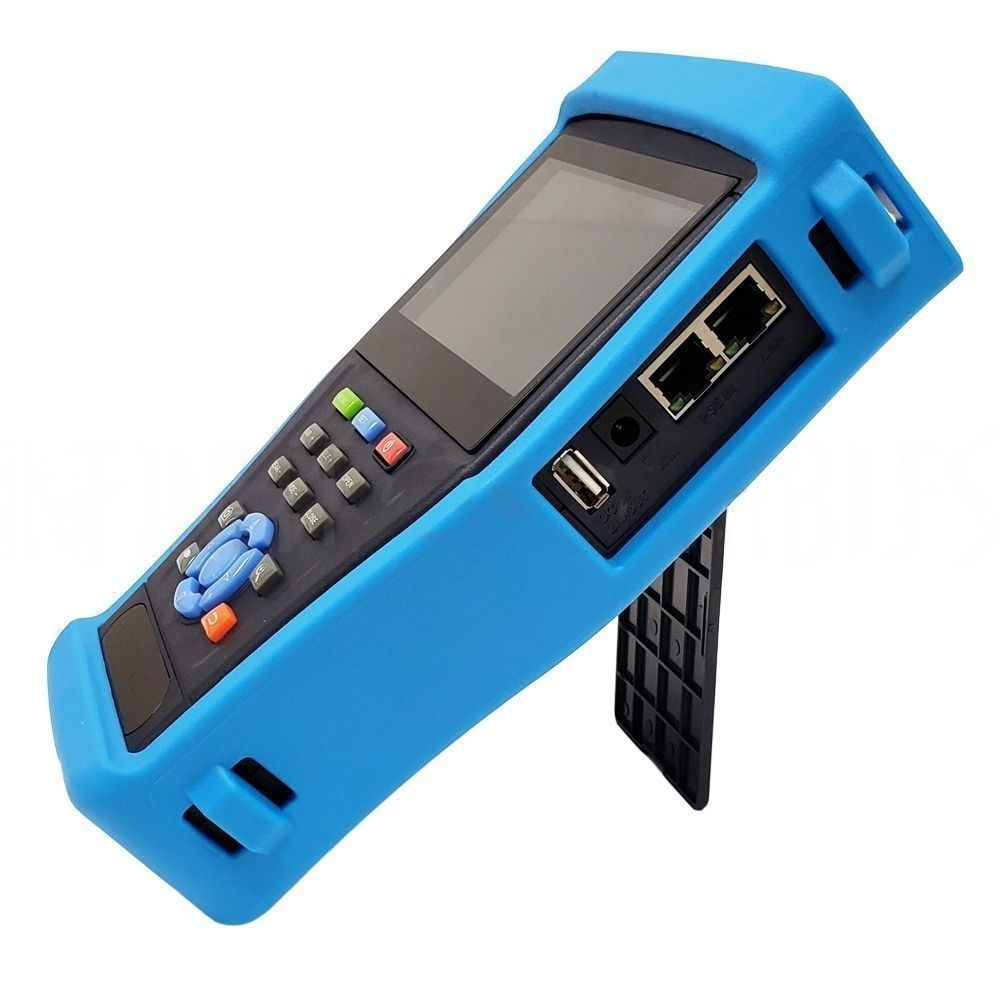

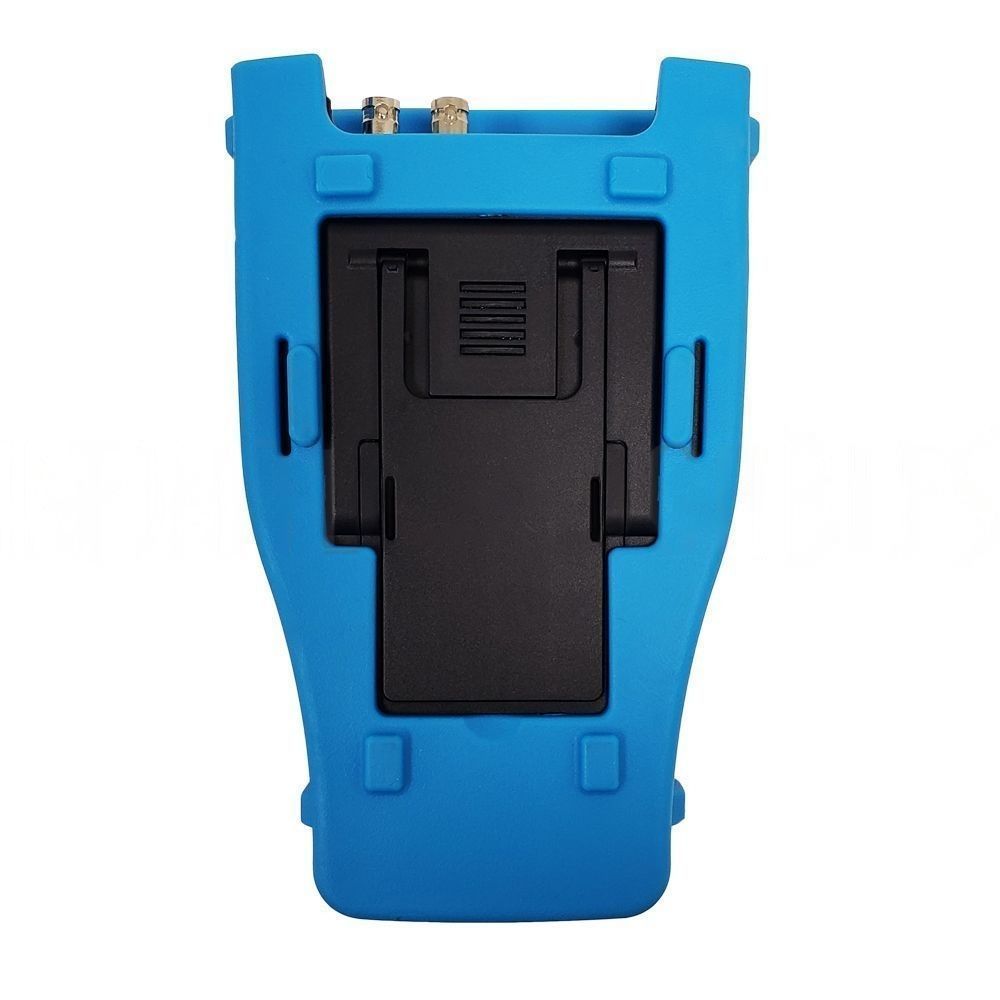

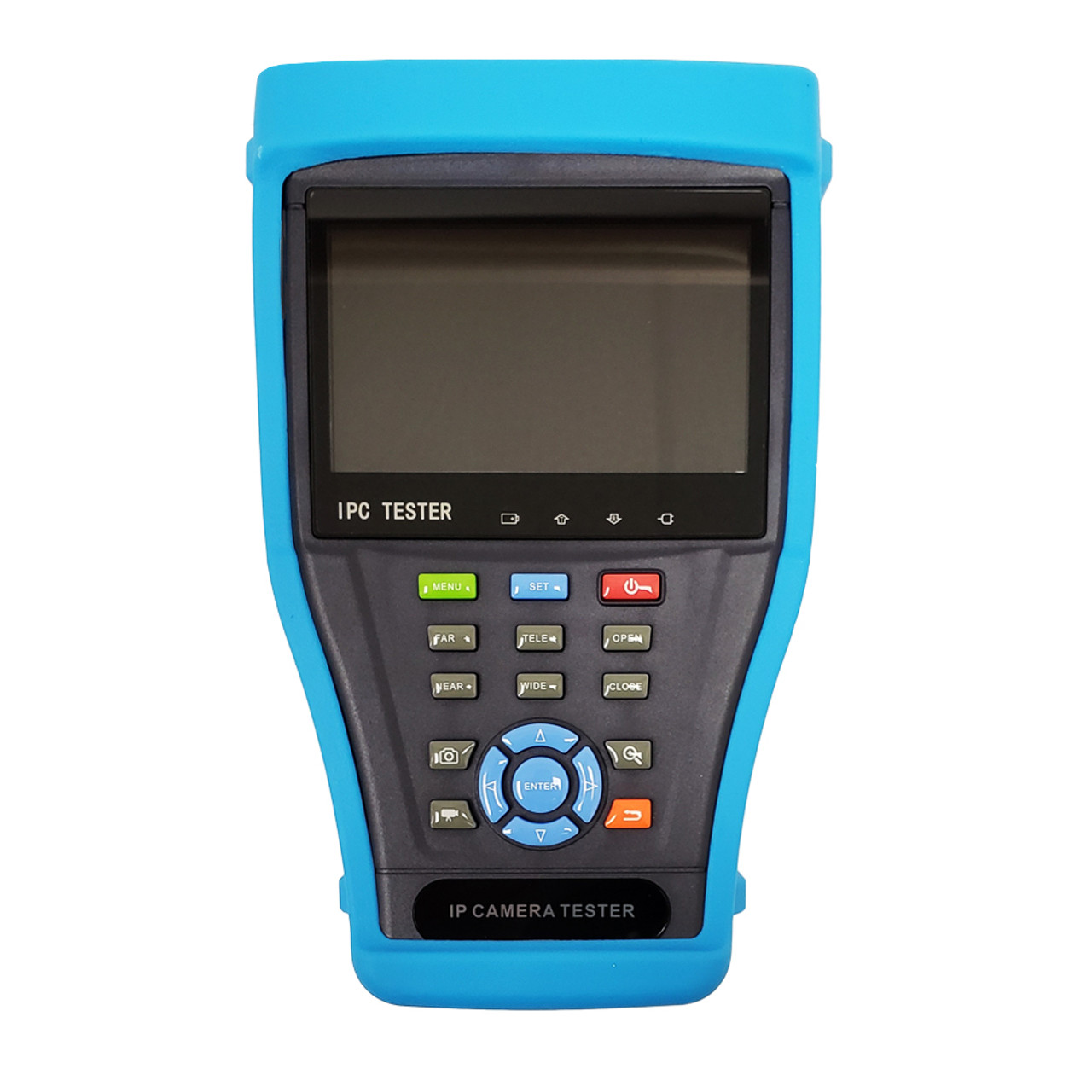

Network Camera Tester – IP/CVBS/TVI(AHD/CVI) Input

Test Equipment & Inspection SKU: CA-IPC-4300H

This camera tester supports both IP and analog cameras. It is typically used for CCTV system or network cabling project installation and maintenance. It can also be used for video transmission channel testing, fixed camera positioning and as a PTZ controller.

$699.99

Description

This camera tester supports both IP and analogcameras. It is typically used for CCTV system or network cabling projectinstallation and maintenance. It can also be used for video transmissionchannel testing, fixed camera positioning and as a PTZ controller.

Features

4.3 inch IPS test monitor with touch screen
ONVIF
DC12V 2A power output / DC 48V PoE power output
HD TVI camera test
IP discovery, Auto-search the whole network segment IP
Auto-login and display the camera image, activate camera quickly
IPC viewer
Support TVI 300Mgea test

Physical Characteristics
Color	Blue
Display	4.3 inch IPS LCD Test Monitor with Touch Screen
Resolution (RGB)	800 x 480
Dimensions	212 x 135.5 x 56.5mm
Operating Temperature	-10℃ to +50℃
Operating Humidity	30% to 90%
Power
Power Output	48V PoE Power Output, 24W (Max Power) DC 12V/2A for camera
Battery	Built-in 7.4V Lithium Polymer Battery, 5000mAh Working Time: 16 hours Charging Time: 7~8 hours
Performance
IP Camera Type	ONVIF
IP Discovery	Auto-scan the whole network segment of IP camera
Rapid ONVIF	Searches for camera quickly, auto log in and display image from the camera
Network Port	10/100M Auto Adapt, RJ45
Wi-Fi	Built in Wi-Fi, Speeds 150M, Display Wireless Camera Image
HD TVI Camera Test	Supports resolution of 1080p@30fps/25fps, 720p@60fps/50fps/30fps/25fps, Camera OSD menu controlled over coaxial cable
CVBS Video Signal Test	Supports PAL/NTSC
PTZ Control	Supports RS232/RS485 control, Baud 600-115200bps Compatible with more than 30 protocols
Image Zoom	Supports 4 x zoom of the image display
Color Bar Generator	Output one channel of PAL/NTSC color bar video signal, for testing monitor / video cable (Red, Green, Blue, White and Black)
UTP Cable Tester	Tests UTP cable connection status and displays on screen
Data Monitor	Captures and analyzes the command data from controlling device
Network Test	IP Address Scan, Link Test, Ping Test, can search IP camera connection and other device’s IP addresses
PoE/PSE Test	Measures PoE Switch or PSE power supply voltage and cable connection status
Auto Power Off	Can adjust from 5 to 30 minutes
Supports	Image Screen Snapshot Record/Save/View/Record and Playback

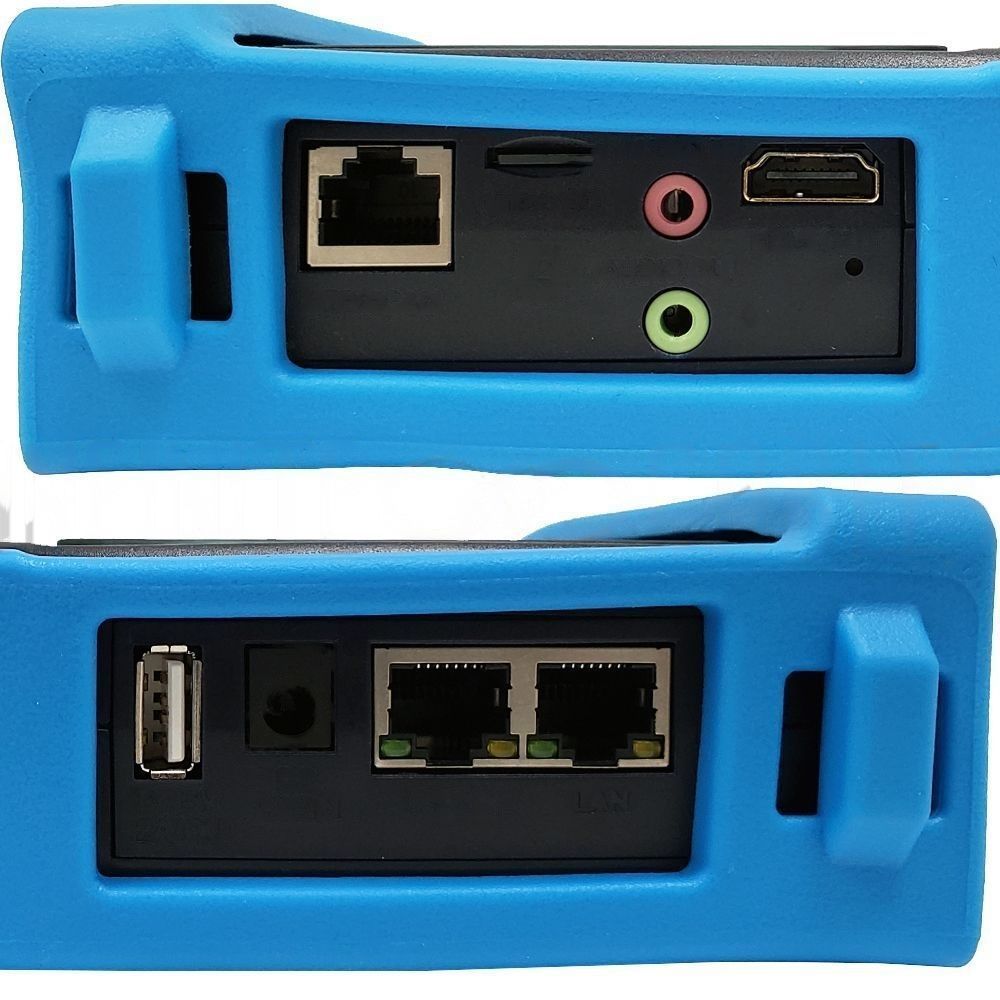

Connectors
Inputs	1 – BNC Input 1 – HDMI Input 1 – Micro SD port 1 – Audio Input 1 – DC 12V Input 1 – RS232/RS845 ports
Outputs	1 – BNC Output 1 – HDMI Output 1 – Audio Output 1 – DC 5V 2A USB A Output
Ethernet	1 – PSE Input 1 – LAN 1 – UTP/SCAN
Packaging Information
Packaging Contents	1 – Network Camera Tester (with 7.4V 5000mAh Polymer Lithium Ion Battery) 1 – Network Cable Tester 1 – BNC Cable 1 – RS485 Cable 1 – Audio Cable 1 – Multi-Meter Test Leads (One Pair of Red and Black) 1 – Power Adapter DC12V/2A 1 – Output Power Cable 1 – Tool Bag 1 – Safety Cord 1 – 8GB Micro SD Card 1 – User Manual
Product Weight	1.65 lbs [0.75kg]
