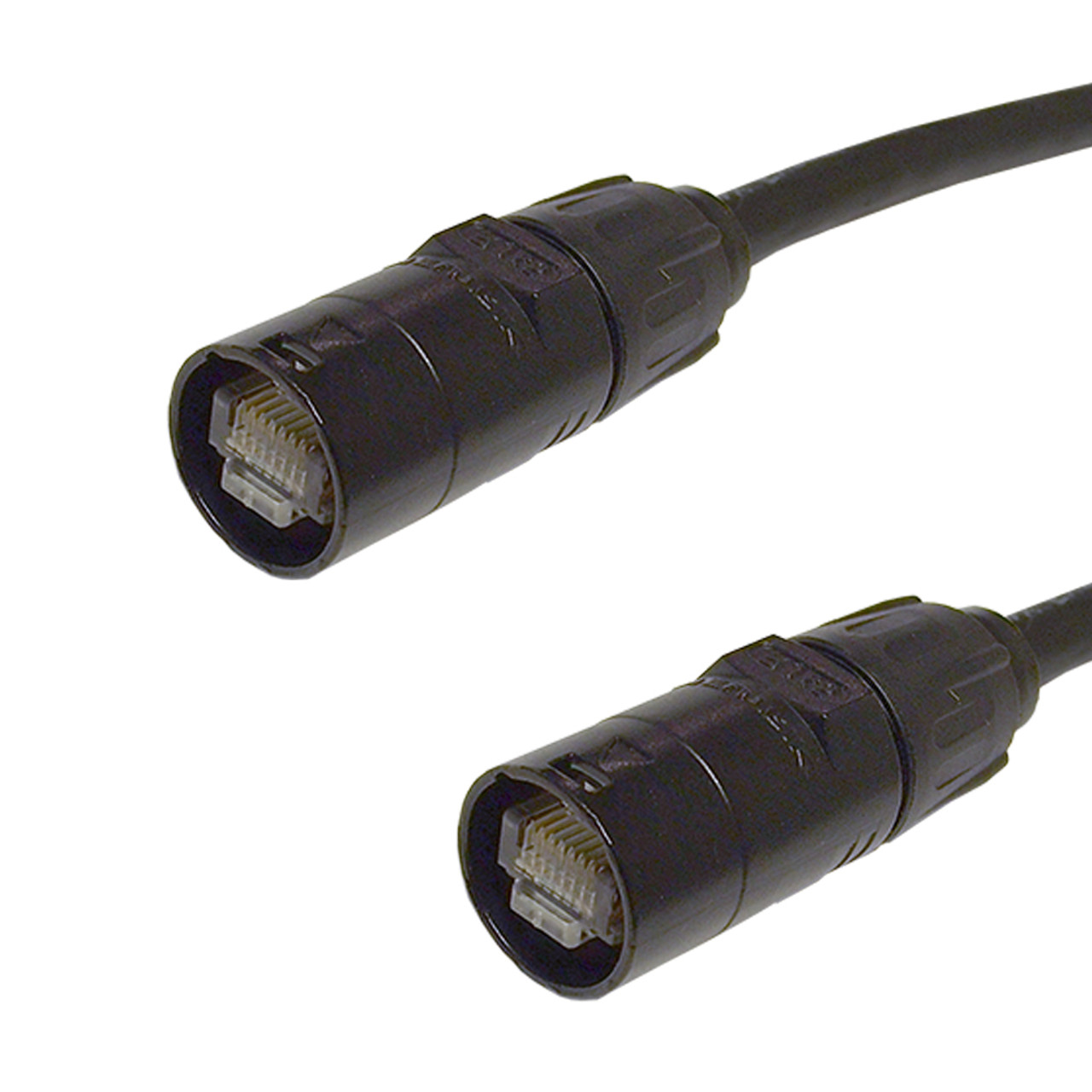

RJ45 Cat5e Ethercon Heavy Duty AV Pro Cable
Price range: $28.99 through $459.99
Description
This EtherCon® heavy-duty Cat5e network patch cable is designed for the pro AV industry. It is typically used to connect professional audio and stage lighting network applications.
Available in two options
- Un-shielded
- 100% Foil + Drain Wire shielding
Note – These cables are designed to mate with Ethercon female ports only.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.8mm |
| Wire Gauge | 24AWG Stranded |
| Pairs | 4 Pairs |
| Color Code | 568B |
| Temperature Rating | -40 deg C ~ +75 deg C |
| Jacket Type | Polyurethane High Flex Ruggedized |
|
Connectors
|
|
| Connector A | Ethercon RJ45 Male |
| Connector B | Ethercon RJ45 Male |
|
Performance
|
|
| Standard | CAT5e |
|
Environmental
|
|
| RoHS | Yes |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
Cable Weights
| 1ft | 3ft | 5ft | 7ft | 10ft | 15ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.70 lbs | 0.75 lbs | 1.00 lbs | 1.25 lbs | 1.50 lbs | 1.75 lbs | 2.00 lbs | 2.75 lbs | 4.00 lbs | 5.25 lbs | 6.50 lbs | 7.75 lbs |
