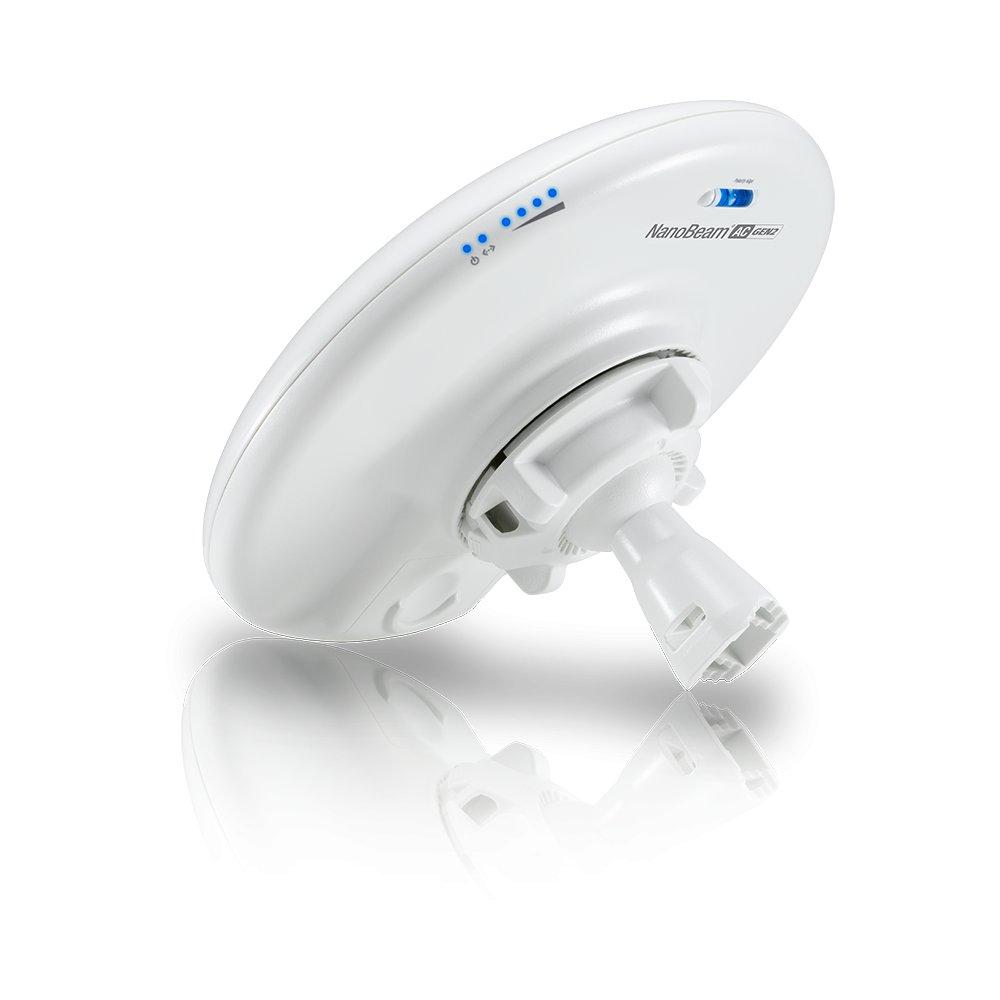

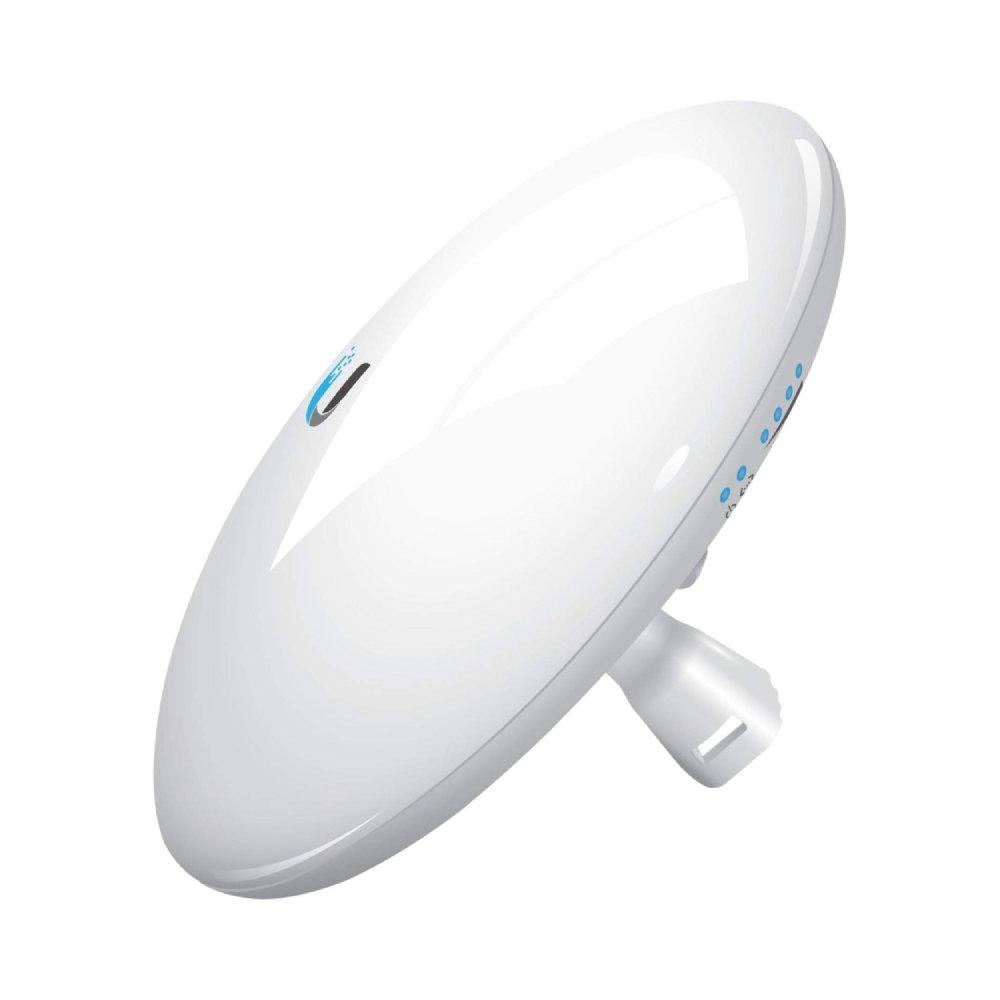

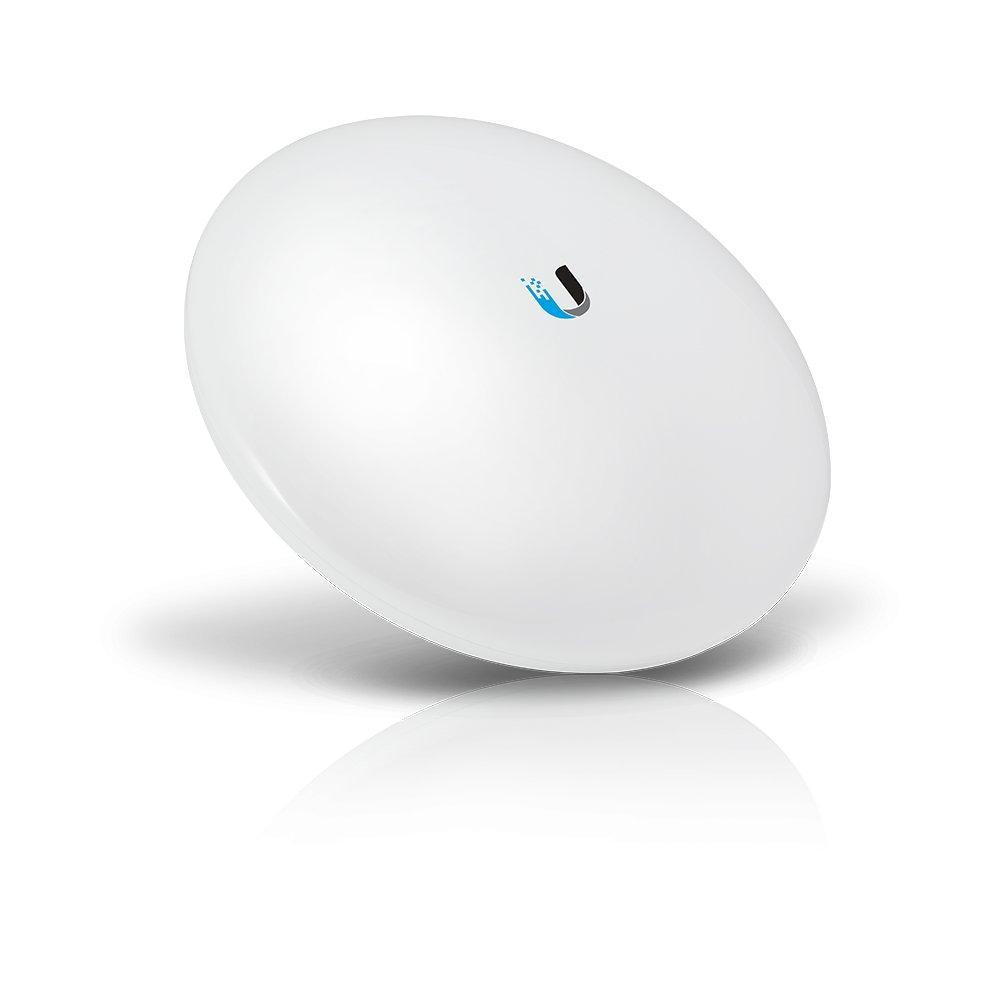

UBIQUITI NBE-5AC-GEN2 Ubiquiti Nanobeam AC Gen2

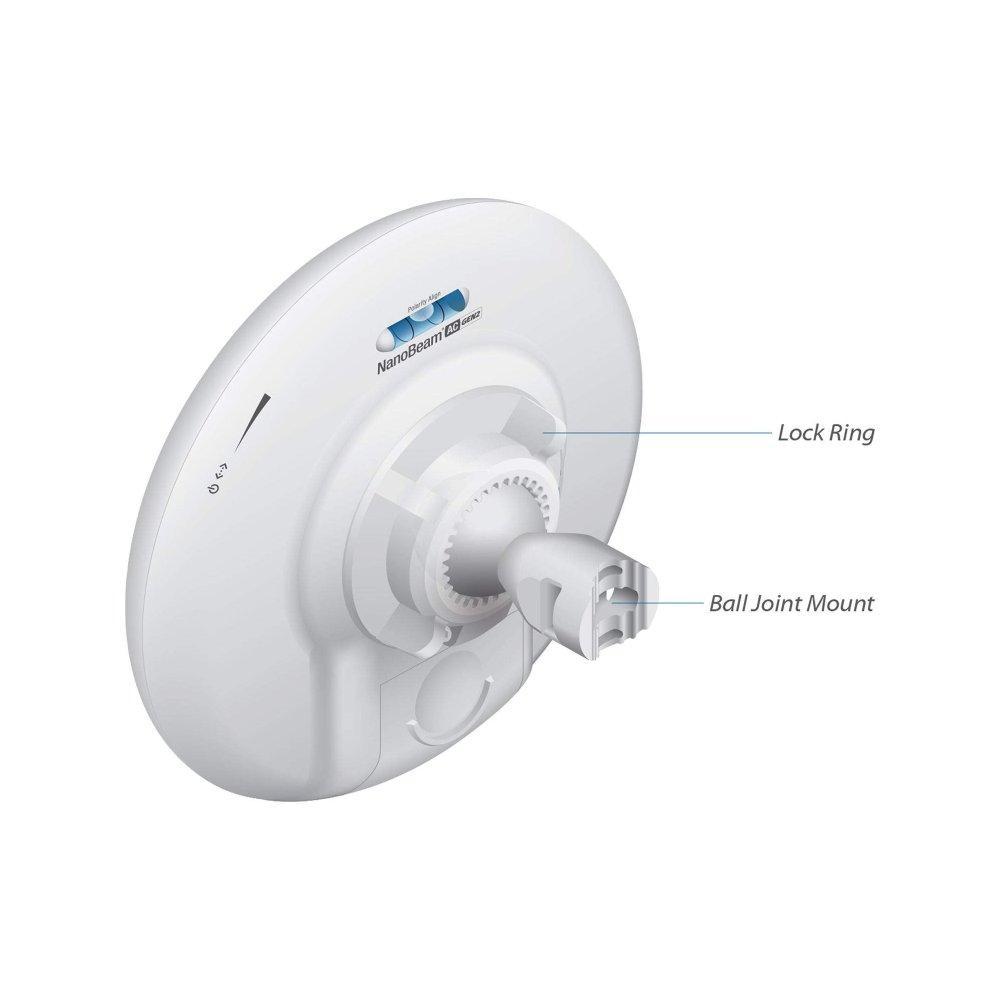

The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.
$149.99
Description
The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.
Features:
- New antenna
- Improved radio design
- Improved surge protection
- Management WiFi Radio/UISP mobile app
- AirOS 8
| Mechanical | |
|---|---|
| Dimensions (Mount Included) | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92″) |
| Weight (Mount Included) | 530 g (1.17 lb) |
| Enclosure Material | Outdoor UV-Stabilized Plastic |
| Wind Loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |

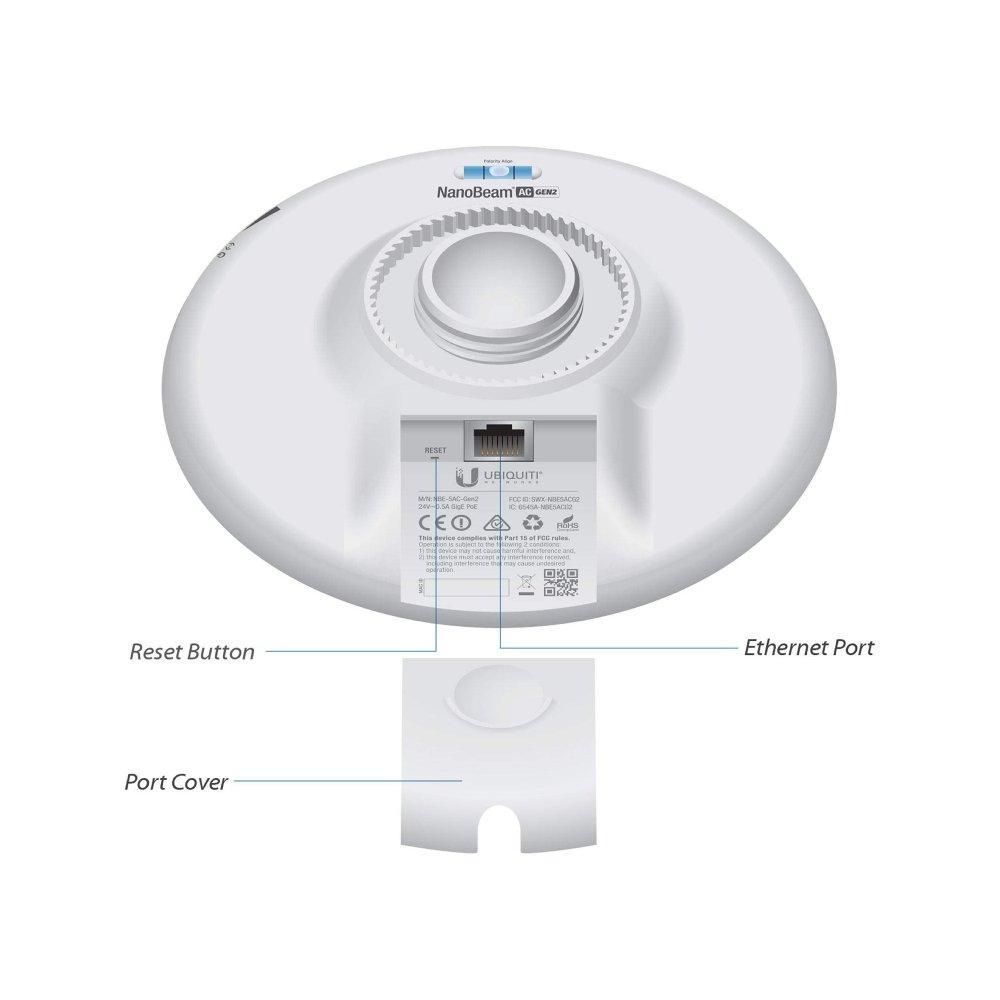

| Networking Interface | (2) 10/100/1000 Ethernet Port, Wi-Fi for Management |
| Gain | 19 dBi |
| Max. Power Consumption | 8W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |

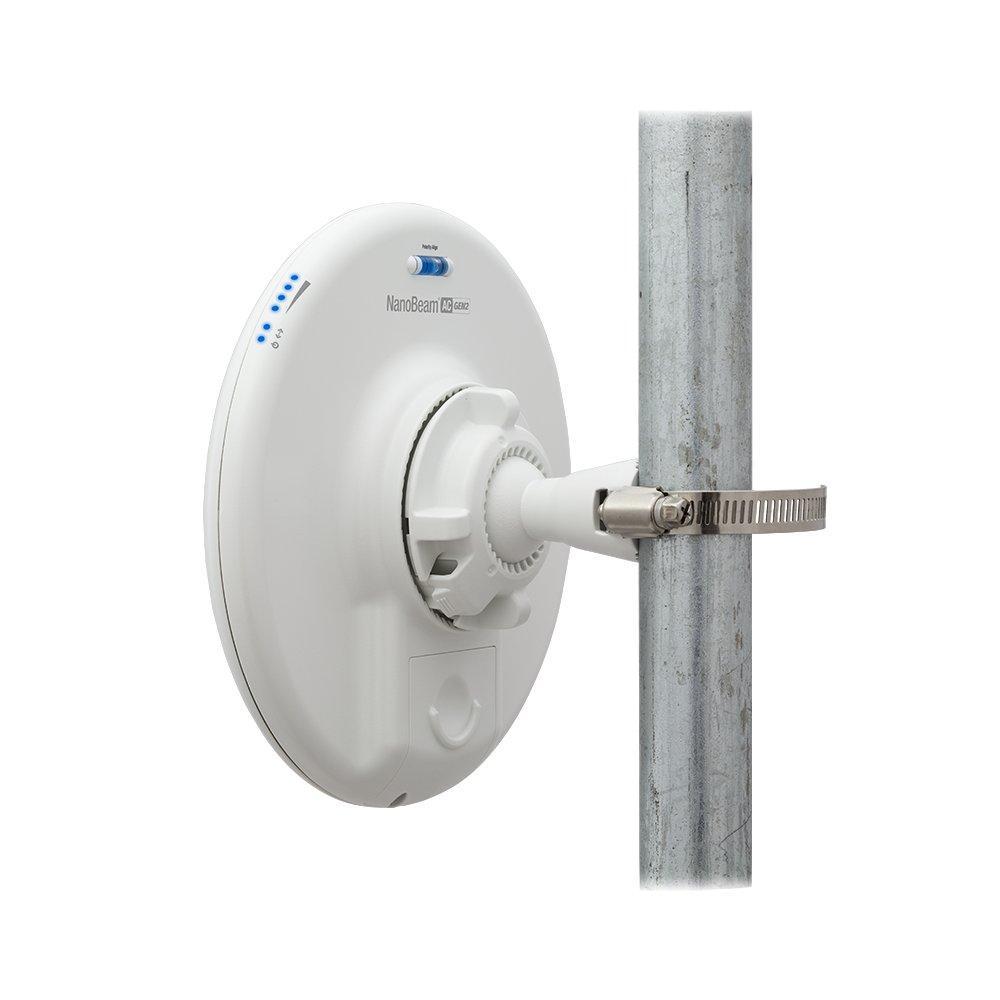

| Mounting | Pole-Mount (Kit Included) Wall-Mount (Not Included) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Operating Temperature | -40 to 80° C (-40 to 176 F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
